Polycom Phones UC Provisioner for FreePBX 2.11

November 11th, 2013 Leave a comment Go to comments

The Polycom Phones module for FreePBX 2.11 has been updated to include additional phone options, alert info settings, contact directory editor, and AD / Exchange integration settings.

Refer to Polycom Phones UC Provisioner for FreePBX 2.11 for additional screenshots and recommended DHCP and FreePBX settings.

Admin -> Modules
Select Upload modules and specify the file below.


See Polycom Phones UC Provisioner for FreePBX 2.11 for the latest version.

Connectivity -> Polycom Phones -> Phones

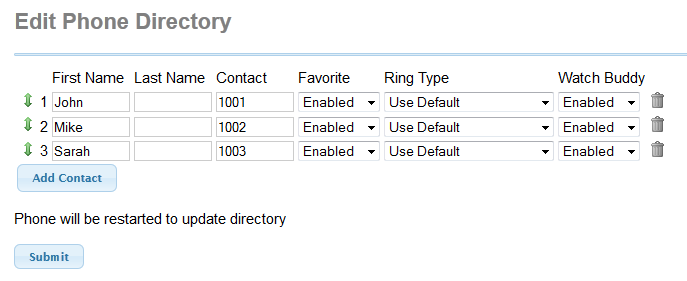

The main contact fields have been included to allow easy configuration of the contact directory and buddy watch feature.

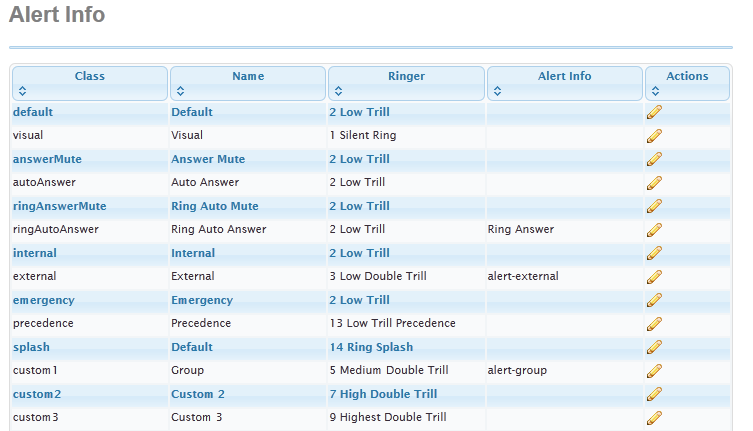

Connectivity -> Polycom Phones -> Alert Info

The Polycom UC software has 11 preset and 17 custom classes. All classes can be modified and assigned an alert info value. By using the same alert info on incoming routes / ring groups in FreePBX you setup the phone to ring distinctly.

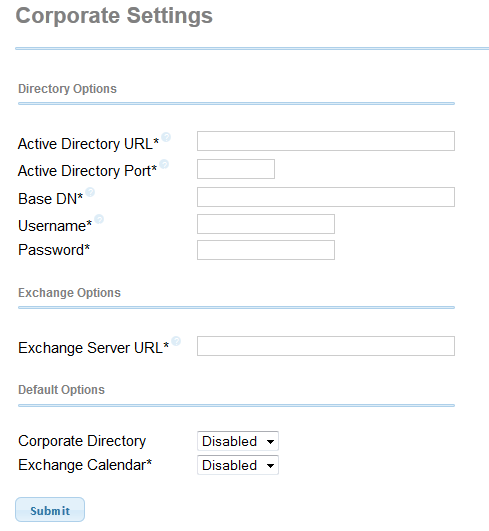

Connectivity -> Polycom Phones -> Corporate Settings

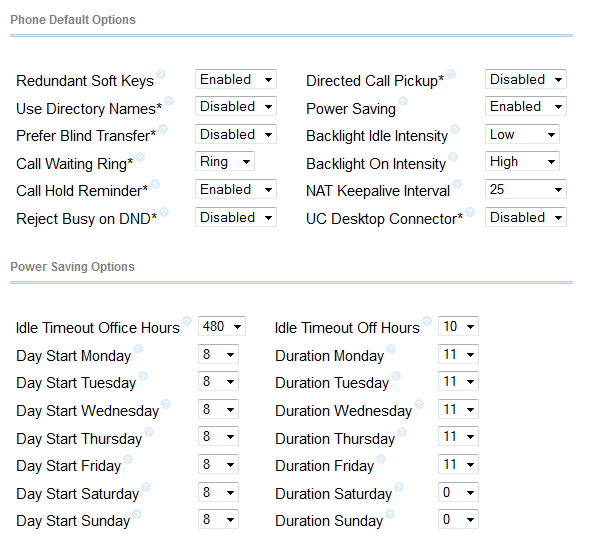

Connectivity -> Polycom Phones -> General Settings

Additional settings have been added, which include the VVX LCD power saving feature.

Categories: Asterisk, VOIP Tags: , ,
  1. DAn
    April 13th, 2014 at 15:08 | #1

    This is a nice package, but I can’t figure out how to add a speeddial/transfer soft button so I can Park calls.

  2. April 13th, 2014 at 16:11 | #2

    If the FreePBX Parking Lot module is installed a Park soft key should appear on the screen when a call is active. If works best if the Blind Transfer feature code is also enabled.

  3. bcj
    June 5th, 2014 at 12:50 | #3

    Thanks for the plugin! Do you have any method for bulk insertion of external lines? If I add the lines via SQL, is that sufficient?

  4. June 5th, 2014 at 13:27 | #4

    No method for bulk insertion, but you can add them direct to SQL. The XML provisioning file is built on the fly from SQL when requested from the phone. Check back as I will be releasing version in the near future which adds additional features.
